Wall Framing Layout: A Step-by-Step Guide for a Sturdy and Professional Finish

Wall framing is a crucial step in the construction of any building, as it forms the skeleton that supports the entire structure. A well-executed wall framing layout ensures strength, stability, and durability for your building. Here's a comprehensive guide to help you navigate the essential steps of wall framing layout:

1. Plan the Layout:

Start by determining the location and overall dimensions of your walls. Create a detailed floor plan that includes the length, height, and thickness of each wall. Consider the placement of windows, doors, and other openings to ensure proper framing support.

2. Establish a Baseline:

Mark a straight line on the floor or foundation where your first wall will be located. This line will serve as your baseline and should be used to align all subsequent walls.

3. Set Corner Posts:

At the intersections of walls, place corner posts that extend from the floor to the ceiling. These posts define the corners of your walls and provide vertical support.

4. Install Top and Bottom Plates:

Attach horizontal plates to the top and bottom of the corner posts. The top plate supports the roof, while the bottom plate connects the walls to the floor or foundation.

5. Frame the Walls:

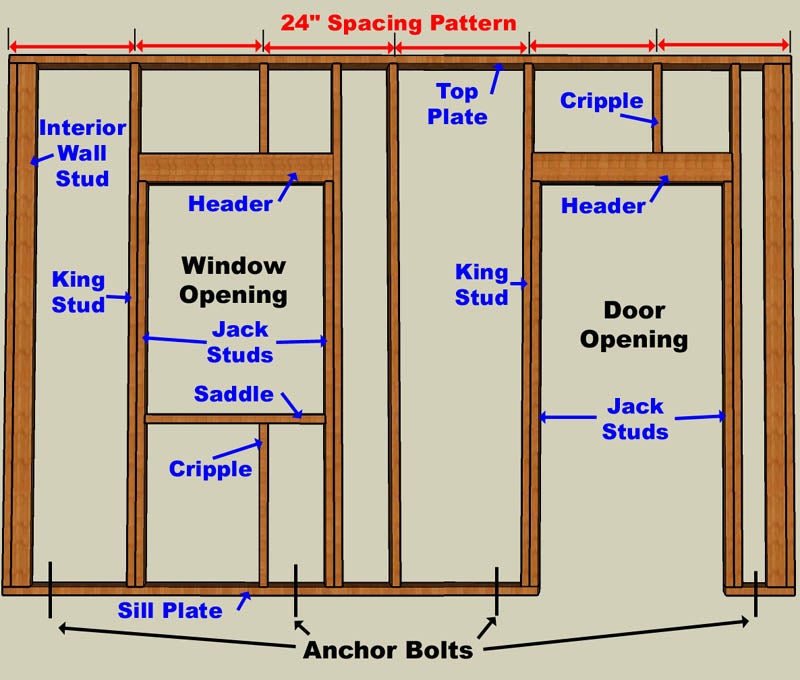

Use evenly spaced vertical studs to connect the top and bottom plates. The distance between studs, known as the "stud spacing," is typically 16 or 24 inches on center.

6. Install Header Beams:

When framing openings for windows or doors, install header beams above them to distribute the load and prevent sagging. Header beams should be sized appropriately based on the span and weight they must support.

7. Sheathing the Walls:

Cover the exterior side of the framed walls with sheathing material, such as plywood or OSB. Sheathing provides a solid surface for siding and improves the structural integrity of the walls.

8. Check for Squareness:

Use a square or measuring tape to check that your walls are square. This means that the corners should form perfect 90-degree angles and that the walls are parallel to each other.

9. Secure the Walls:

Nail or screw the walls to the floor or foundation and to each other for added stability. Use hurricane ties or other bracing methods in areas prone to high winds.

Conclusion:

By following these steps, you can achieve a professional and structurally sound wall framing layout. Remember to use high-quality materials and follow building codes to ensure the safety and longevity of your construction project.
